Which Trackers are included with 3D Player?

Numbers and visuals included with 3D Player

Sportsbox Numbers & Tracker Definitions

The "Show data" tab is located at the bottom center of the 3D Analysis screen, positioned directly above the video playback timeline. To access it, simply tap the small black tab featuring the upward-pointing arrow (^). This will slide up the data panel, allowing you to view and measure various biophysical metrics throughout the golf swing.

Data included with 3D Player (as of May 2026):

  • TURN: Turn is rotation around the up-down axis, i.e. the Y-Axis. A positive value means that your body is turning (opening) towards the target and a negative value means your body is turning (closing) away from the target. All turn values are calculated with respect to the straight line through the two ankles as the 0 degree line.
    • Chest turn (FON&DTL) - Turn of the chest. It is negative when your chest is turned away from the target and positive when your chest is turned towards the target.
    • Pelvis turn (FON&DTL) - Turn of the pelvis. It is negative when your hips are turned away from the target and positive when your hips are turned towards the target.
    • X-Factor (FON&DTL) - The turn (in degrees) of the chest with respect to the pelvis, if chest is more open to the target than the chest it is positive, otherwise negative.
  • SWAY: Sway values are measured in inches. Sway shows the side-to-side path of movement. Toward the target is a positive value and away from the target is a negative value. Sway value is always 0" at address.
    • Chest sway (FON) - Lateral movement of the chest. It is set to 0 at address. Compared to address, the numbers are negative when your chest is laterally sliding away from the target and positive when your chest is sliding towards the target.
    • Pelvis sway (FON) - Lateral movement of the pelvis. It is set to 0 at address. Compared to address, the numbers are negative when your pelvis is laterally sliding away from the target and positive when your pelvis is sliding towards the target.
  • LIFT: Lift values are measured in inches. Lift shows the up-and-down path of movement. Negative value is a "drop" toward the ground - relative to the position of the point at address, and positive value is a lift up away from the ground. Lift value is always 0" at address.
    • Chest lift (FON) - Vertical movement of your chest. It is set to 0 at address. It is negative when your chest is dropping lower than it was at address and positive when it is lifting higher than where it was at address.
    • Pelvis lift (FON) - Vertical movement of your pelvis. It is set to 0 at address. It is negative when your pelvis is dipping below where it was at address (drop) and positive when it is moving higher than where it was at address (lift).
  • LINEAR SPEED:  Linear speed values are measured in miles per hour (mph). Linear speed shows the velocity of a specific point or club component (such as the mid-hands or club head) traveling along its moving path. A higher positive value indicates faster straight-line or resultant velocity — relative to a stationary state (0 mph at address). Linear speed values can be tracked continuously as a tracker or captured at peak performance moments, such as Max Hand Speed or Max Club head Speed.
    • Club head speed max (FON) -  Shows the maximum linear velocity achieved by the club head during the downswing, which typically occurs at or immediately before the moment of impact.
    • Hand speed (FON) - The linear speed of a mid-point between the hands, on the shaft. This is a resultant speed so it is always positive.
  • TIME: Time values are measured in seconds (s). Time shows the duration or interval required for a specific phase of the golf swing to occur (such as backswing time or downswing time).
    • Follow through time (FON&DTL) - The follow through phase of the golf swing from impact to finish.
    • Total swing time (FON&DTL) - The full gold swing happens from address through finish.
    • Tempo (FON&DTL) - The value obtained when one number is divided by another.
  • KINEMATIC SEQUENCE: shows the timing, order, and rotational speed at which different body segments (pelvis, chest, lead arm) and the club shaft accelerate and decelerate during the downswing to transfer energy from the ground up.
    • Core gain factor (FON&DTL) - The ratio of the amount of angular speed between two segments in the kinematic sequence.
    • Transition (FON) - The point in the swing when a body segment or the club changes direction from the backswing to downswing.
  • ANGLE: Angle values are measured in degrees. Angle shows the orientation, tilt, or alignment of a club component or body segment (such as the shaft or wrist) relative to a specific viewpoint or geometric baseline. A positive value indicates a forward or steepened position, while a negative value indicates a backward, shallowed, or decreased position — relative to the baseline or address position.
    • Shaft angle (DTL) - Angle of the club shaft from face-on view. The shaft is at 0 degrees when it's pointing down, perpendicular to the ground. It is negative in when the club is behind the hands and positive when the club  head is ahead of the hands.
    • Swing Dir v Stance (DTL) - The angle between the impact zone swing plane, projected onto the ground, and the golfer's stance angle (ankle-to-ankle-line). For a positive value indicates an in-to-out swing direction and a negative value indicates out-to-in swing direction with respect to the stance.
  • THRUST: Values are measured in inches. Thrust shows the forward-and-backward path of movement along the down-the-line target line plane. Negative value is a movement "away" from the golf ball — relative to the position of the point at address, and positive value is a thrust "forward" toward the golf ball. Thrust value is always 0" at address.
    • Chest thrust (DTL) - The forward or backward movement of your chest. It is set to 0 at address. It is negative when the chest is pushed back/farther away from the ball than at address and positive when there's more movement forward, closer to the ball than at address.
    • Club thrust (DTL) - The forward or backward movement of the club  head. It is set to 0 at address. It is negative when the club head is pulled back, positive when it is pushed forward.
    • Club hand gap (DTL) - The ahead or behind position of the club head with respect to the hands. A negative number indicates the club head is behind the hands and a positive number indicates the clubhead is ahead of the hands from a down-the-line view.
    • Hand thrust (DTL) - The forward/backward movement of your hands. It is set to 0 at address. It is negative when your hands are moved backward, away from the ball and positive when there's more movement towards the ball, with respect to their position at address.
    • Pelvis thrust (DTL) - The forward/backward movement of your pelvis. It is set to 0 at address.It is negative when the pelvis is pushed back/farther away from the ball than at address and positive when there's more movement forward, closer to the ball than at address.

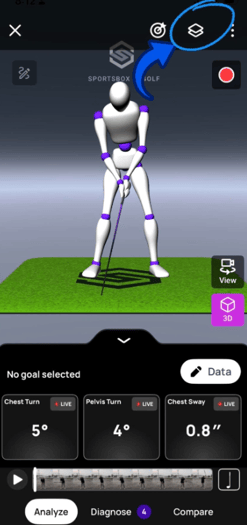

VISUALS are found on the upper right corner of the 3D Analysis Screen of the Sportsbox Golf app. Tap on the 2nd icon from the right (the stacked layers icon circled in the photo) to access the visual elements that appear on or around the Robot avatar and measure various aspects throughout the golf swing.

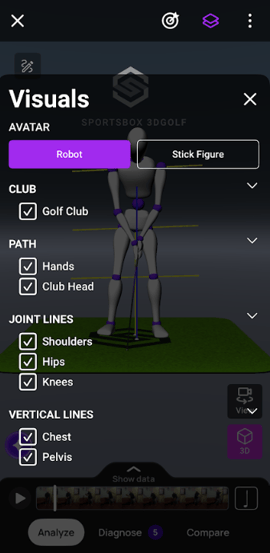

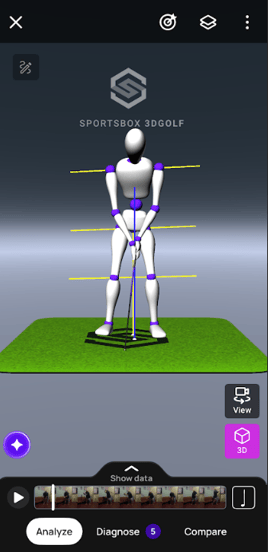

Visuals included with 3D Player (as of May 2026):
